eCDV Valves for Active Damping

eCDV | Valves for
Active Damping

Advanced active damping solutions for enhanced vehicle safety and comfort

Solero Technologies > Products > Active Suspension > eCDV Valves for Active Damping

Enhancing driving safety and comfort with eCDV Valves for Active Damping

At Solero Technologies, we deliver advanced eCDV valves for active damping, enhancing vehicle safety, comfort, and handling in diverse driving and road conditions. As driving dynamics evolve, our innovative solutions cater to the latest and future vehicle generations. With increasing demand for precision, stability, and comfort, active damping systems play a crucial role in optimizing ride quality. Our high-performance damping technology continuously adapts in real-time, improving traction, comfort, and vehicle control.

Designed for modular integration, our customized damping solutions enable damper system manufacturers to accelerate development, reduce costs, and bring proven, cutting-edge technology to market faster.

Choose an option ▾

Working principle

Benefits at a glance

Technical specifications

Working principle

The External Continuous Damping Valve is a high-performance, electronically controlled valve designed for use in adaptive suspension systems. Mounted externally to the damper, it continuously adjusts damping forces in real time based on road conditions, driving style, and vehicle dynamics. By regulating the hydraulic fluid flow through an electromagnetic actuator, it enables seamless transitions between comfort and performance modes.

Ideal for premium vehicles, SUVs, and sports cars, this valve enhances ride comfort, handling precision, and overall driving safety. Its modular design allows for easy integration, making it a versatile solution for next-generation suspension systems.

Benefits at a glance

  • Superior Performance Quality (PQ) Curve
    Ensuring optimal damping performance across all driving conditions
  • Leading Independent Supplier
    Providing cutting-edge active damping solutions with proven expertise
  • Compact & Efficient Design
    Space-saving architecture for seamless vehicle integration
  • Accelerated Time to SOP
    Faster development and production timelines to meet industry demands
  • Decades of Expertise
    Backed by years of innovation in damping technology

Technical specifications

eCDV Valves for Active Damping

Technical data

Valve type:

2-way pilot-operated valve, normally (non-energized) close or open (Failsoft)

Valve setting:

comfort at low power, hard at full current, fully proportional​

Fail safe:

optional, medium setting at zero current (new design), with low-cost failsafe Softmode 0-0,35/0,4A​

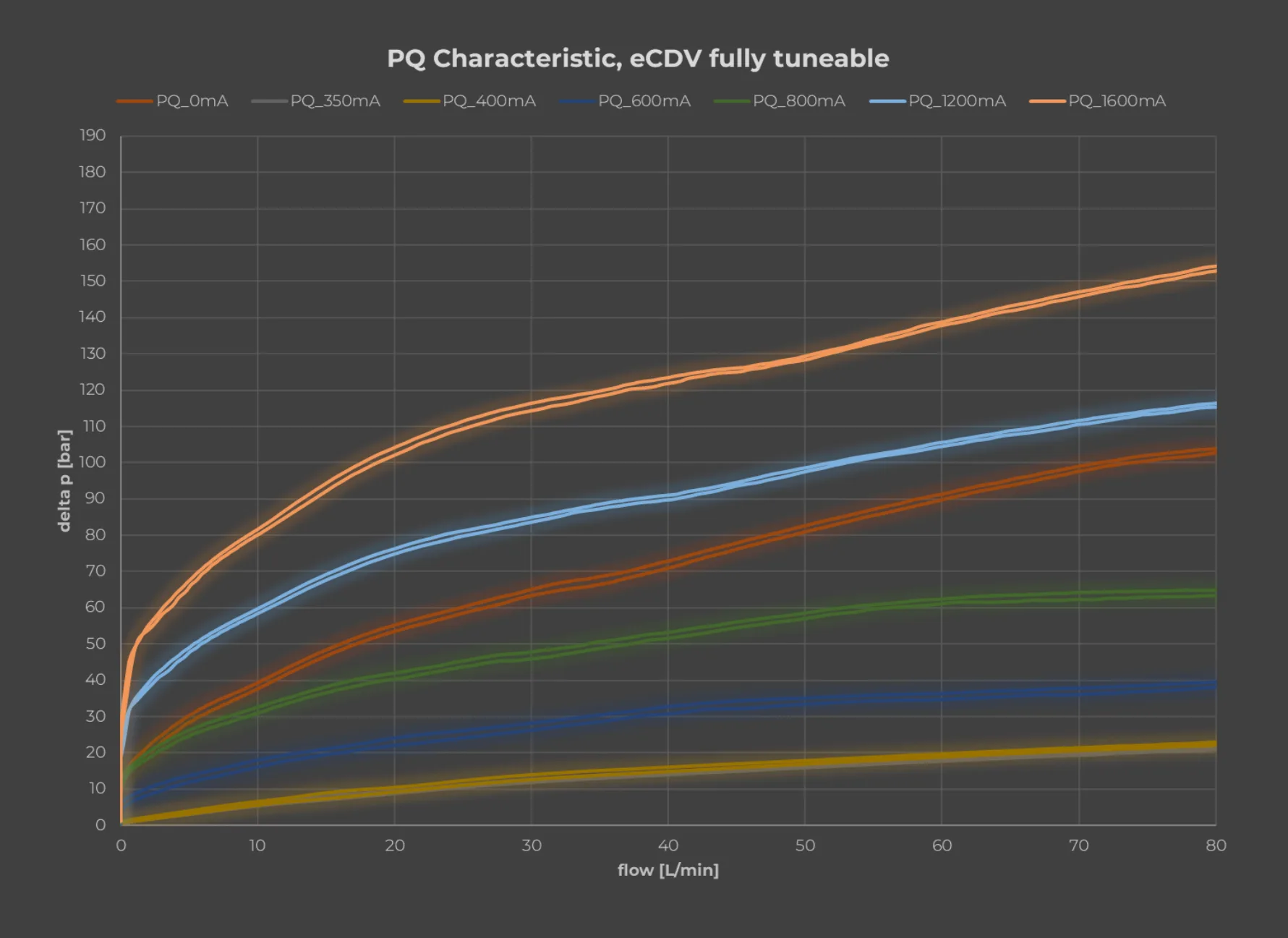

P-Q curve:

variable, customer specific (tuneable)​​

Max. working pressure:

200 bar

Burst pressure:

400 bar

Max. flow:

general control area 50lpm (possible up to 100lpm)

Voltage range:

9-16 V

Max. operation current:

1.6 A (hard mode), optional 1,8 A (very short time)​

Control current:

0,35/0.4 A (soft mode)-1.6 A (1.8 A)​

Initialization peak with <= 200 ms
with optional failsafe necessary​

Resistance:

3Ω+-10% @ 20°C, 11,5 g

PWM frequency:

Normally: 1-2 kHz (free for customer)​

Temperature range:

-40 °C (reduced function) bis +120 °C, short time +140 °C​

Operating fluid:

Mineral oils for dampers​ e. g. Titan SAF5045 EU 137; SAF1579 EU 175

Protection class:

IP6K9K (system)​

Dimension:

≈ 59 mm x Ø30 mm ​​

Weight:

≈<170 g ​​

Switching time valve
(stand alone)​

Flow:

3,5 L/min

0,4  A to 1,6 A:

< 32 ms​

1,6 A to 0,3 A:

< 15 ms​

Switching time valve
(stand alone)​

Flow:

17,5 L/min

0,4  A to 1,6 A:

< 20 ms​

1,6 A to 0,3 A:

< 15 ms​

Switching time valve
(stand alone)​

Flow:

60 L/min

0,4  A to 1,6 A:

< 15 ms​

1,6 A to 0,3 A:

< 15 ms​

Download

Technical drawing available for download. For a customer-specific offer drawing, please get in touch with us.

PDF

Technical Drawing

eCDV

Tom Vollerot

Contact us!

Let’s work together to find the ideal solution for you.
