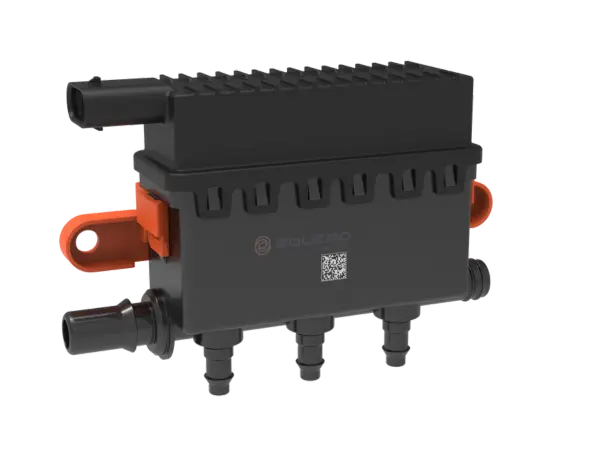

Stackable 2/2-Way Valve
Platform for Sensor Cleaning
Discover our valve platform, stackable with up to 4 valves on a single manifold for ADAS.
Also available in a smart version with advanced diagnostics
Precision Sensor Cleaning with our Valve Platform
Our electromagnetic 2/2-way valve platform is a smart, stackable sensor cleaning solution designed for autonomous vehicles at Level 2+, 3, 4, and 5. This advanced system supports up to four valves on a single manifold, ensuring precise and efficient cleaning processes for both air and water systems. With the ability to switch pressures up to 6.4 bar, it enhances cleaning efficiency while minimizing power consumption. Its ultra-compact and lightweight design allows for easy integration into space-constrained environments, making it an essential component for ADAS and autonomous driving applications.
Our sensor cleaning valve platform offers a flexible and adaptable concept suitable for various sensor cleaning needs, and it is available as a fully validated, off-the-shelf product, ready for immediate implementation.
Working principle
Advanced Electromagnetic Valve Control for optimized Sensor Cleaning
The Electromagnetic 2/2-Way Valve operates based on an electromagnetic actuation mechanism, ensuring rapid and precise control over fluid or air flow. When an electrical current is applied, the electromagnetic coil generates a magnetic field, which moves the internal plunger to open or close the valve. This allows the controlled release of pressurized air or cleaning fluid through the system, ensuring a targeted and efficient cleaning process for vehicle sensors.
By integrating up to four valves on a single manifold, the platform enables selective activation of individual valves, directing cleaning fluids precisely to the required sensors. This targeted approach optimizes fluid consumption while maintaining consistent cleaning efficiency. The valve design ensures quick response times and minimal pressure loss, making it ideal for ADAS applications where sensor clarity is critical for safety and performance.
Platform Design & Customization Options
Our platform valve is designed with a modular and scalable structure, allowing for seamless integration. The stackable configuration enables flexible expansion, adapting to different vehicle requirements. Meanwhile, our 2/2-way valve features customizable options, allowing for tailored features to meet specific requirements:
- Connector Coding: Customized coding through different inserts, available in Type A, B, and C
- Flexible Mounting: Customized mounting clips allow for adaptable installation across different system designs
- Poka-Yoke Marking: Ensures fail-safe assembly, reducing the risk of incorrect installations.
Benefits at a glance
Stackable 2/2-Way Valve Platform:
- Off-the-Shelf Solution – Ready for immediate implementation
- Flexible & Adaptable – Suitable for various ADAS applications
- Validated for Performance & Reliability – Ensures high-quality operation
- Ultra-Compact & Lightweight – Ideal for space-constrained environments
- Optimized for Autonomous Vehicles – Designed for next-generation mobility solutions
- Supports Fluid & Air Systems – Ensuring versatile application options
- Wide Voltage Range (9.9V – 24V) – Compatible with various power systems
- Current Control – 2.5A (50ms) peak / 1.5A hold for efficient operation (BWM)
- High Pressure Handling – Operates at a maximum pressure of 6.4 bar
NEW:
Solero Technologies also offers a smart sensor cleaning valve version with ECU for intelligent diagnostics.
- Sensorless Position Detection – Ensures precise armature tracking without additional sensors
- Sensorless Temperature Control – Measures temperature efficiently without external sensors
- Peak-Hold Functionality – Optimizes power consumption for reliable performance
- Anti-Blocking Function – Prevents valve blockage and extends lifetime
Technical specifications
Technical data
without ECU
Valve type:
normally closed (NC)
Medium:
water/ethanol 1:1 / air
Flow rate/pressure drop:
1.5l/min @ Δp = 0.5 bar @ 20°C (water/ethanol 1:1)
110 Nl/min @Δp 0.75 bar 4.7 bar abs . 0 C° (air)
Medium pressure:
0 bar to 6.2 bar +-0.2 bar
Burst pressure:
> 9 bar
Max. Operation pressure:
6.4 bar
Voltage Range:
9.0 V – 24.0 V
Control:
Current control -> Peak / Hold => 2.5A (50ms) / 1.5A
Operation temperature range:
-40°C to +85°C
Duty Cycle:
Min. 30%
Response time:
<= 50ms
Protection class:
> IP65
Max. leakage:
3cm³ / 24h (water)
Durability:
10’000’000 switching cycles
Max. switching noise:
52 dB (A) (depending to test conditions t.b.d.)
Dimensions single valve
without connector:
approx. H 37.3mm / W 30.2mm / D 30.4mm
overall:
approx. H 74.4mm / W 30.2mm / D 30.4mm
pitch distance:
approx. 31mm
Weight (single valve):
< 95 g
Modularity:
stackable (valve by valve, up to 4)
Technical data
with ECU
Valve type:
normally closed (NC)
Medium:
water/ethanol 1:1 / air
Flow rate/pressure drop:
1.5l/min @ Δp = 0.5 bar @ 20°C (water/ethanol 1:1)
110 Nl/min @Δp 0.75 bar 4.7 bar abs . 0 C° (air)
Medium pressure:
0 bar to 6.2 bar +-0.2 bar
Burst pressure:
> 9 bar
Max. Operation pressure:
6.4 bar
Voltage Range:
9.0 V – 16.0 V
Control:
Current control -> Peak / Hold => 2.5A (50ms) / 1.5A
Operation temperature range:
-40°C to +85°C
Duty Cycle:
Min. 30%
Response time:
<= 50ms
Protection class:
> IP65
Max. leakage:
3cm³ / 24h (water)
Durability:
10’000’000 switching cycles
Max. switching noise:
52 dB (A) (depending to test conditions t.b.d.)
Dimensions single valve
approx. H 37 mm / W 30 mm / D 65 mm
pitch distance:
27.5 mm (without connector)
Weight (single valve):
110 g
Modularity:
from single valve up to 6-fold valve-block
Communication:
LIN or Private CAN protocol
Driver:
Embedded power driver
